Multi-function Chips Vertical Form Fill Seal Pack Machine Automatic Pillow Bag Food Packaging Machines

Share on facebook
Share on twitter
Share on linkedin
Share on whatsapp

Product Information:

Additional information

Model
ST420
Packing speed
25-50 Bags / Min
Bag size(mm)
(W) 90-200 (L) 100-350
Bag making model
Pillow bag, standing bag (gusseted), punch, Linked bag

Range of measuring
10-500g
Maximum width of packing film
420 mm
Thickness of film
0.04-0.10 mm
Air consumption
0.5m3/min 0.8MPa
Packing Material
laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET,

Power Parameter
220V 50/60Hz 4KW
Package Volume (mm)
1480(L)×1050(W)×1700(H)
Gross Weight
600kg

Main Features

1. Adopting PLC from Japan or Germany to make machine run stable. Touch screen from Tai Wan to make operation easy.
2. Sophisticated design on electronic and pneumatic control system makes the machine with high level of precision, reliability and stability.
3. Single-belt pulling with servo of high precise positioning makes film transporting system stable, servo motor from Siemens or Panasonic.
4. Perfect alarm system to make problem solved quickly.
5. Adopting intellectual temperature controller,the temperature is controlled to ensure neat sealing.

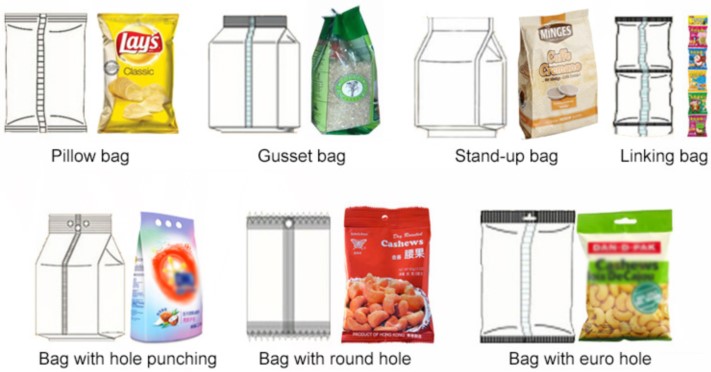

6. Machine can make pillow bag and standing bag (gusseted bag) according to customer’s requirements. Machine also can make bag with punching hole & linked bag from 5-12 bags and so on.

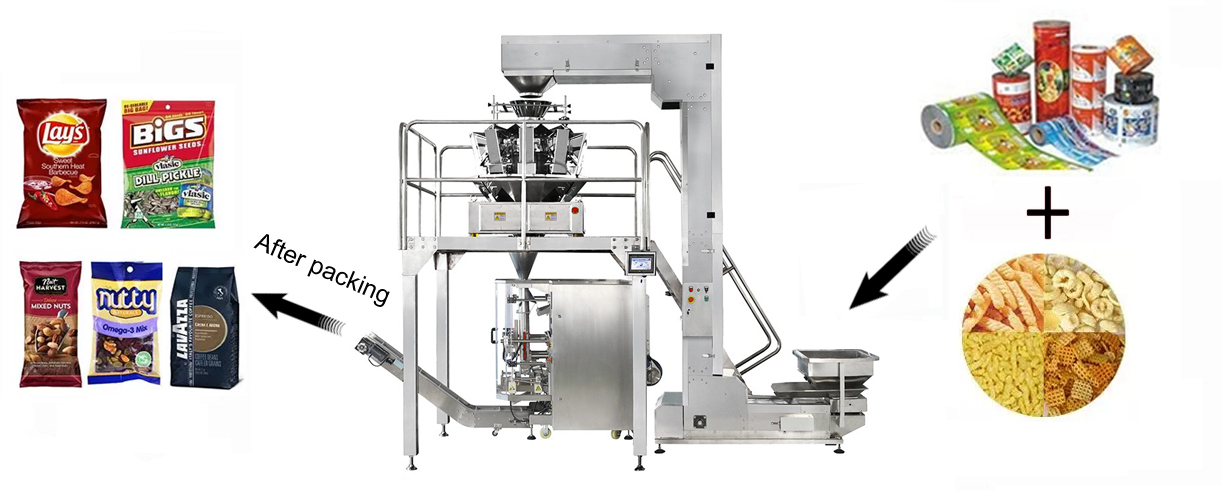

7. Working with weighing or filling machines such as multihead weigher, volumetric cup filler, auger filler or feeding conveyor, process of weighing, bag making, filling, date printing, charging (exhausting), sealing, counting and delivering finished product can be completed automatically.
