High speed automatic paper carton box making machine

Category
carton paper box making forming erecting machine use thermal bonding system to produce various fast food paper box container with high quality and efficiency.
PLC control system can produce various complex boxes, and automatically stop when there is paper jamming or no paper, more safe and convenience for operation.
Automatically collecting, stacking and counting.
ASK FOR A QUOTE
Share on facebook
Share on twitter
Share on linkedin
Share on whatsapp

Product Information:

Additional information

Sample picture:

type

ST-D800

ST-D1200

Production capacity

50-180 pcs/min

80-320pcs/min

Suitable Material

200-600g/m2 card paper,PE coated paper, kraft paper, corrugated paper

Length

L100-450mm,degree:5°-40°

L100-450mm,degree:5°-40°

Width

100-600mm

W100-400mm

Hight

15-200mm

H15-200mm

Total Power

5KW

6.25KW

Total Weight

1.8T

2.8T

Overall Dimension

3600 x1400 x 1700 mm

3600 x 1850 x 1700 mm

power source

380V /220V 50HZ

380V 50HZ

After-sales Service Provided

Free spare parts,Video technical support,Field installation, commissioning and training,Field maintenance and repair
service,Online support

Paper box erecting machineFeatures

  • It adopts micro-computer, PLC

  • alternating current frequency converter

  • the vacuum-sucking paper feeding

  • auto gluing

  • automatic paper tape counting

  • chain drive

Paper box erecting machine Application

carton paper box making forming erecting machine is a special forming machine that produces various fast food box container, such as, burger box, one block box, food pail box( take away box), hamburger box, French Fries box take out container and other related containers made by aluminum foil paper and double PE coated paper.

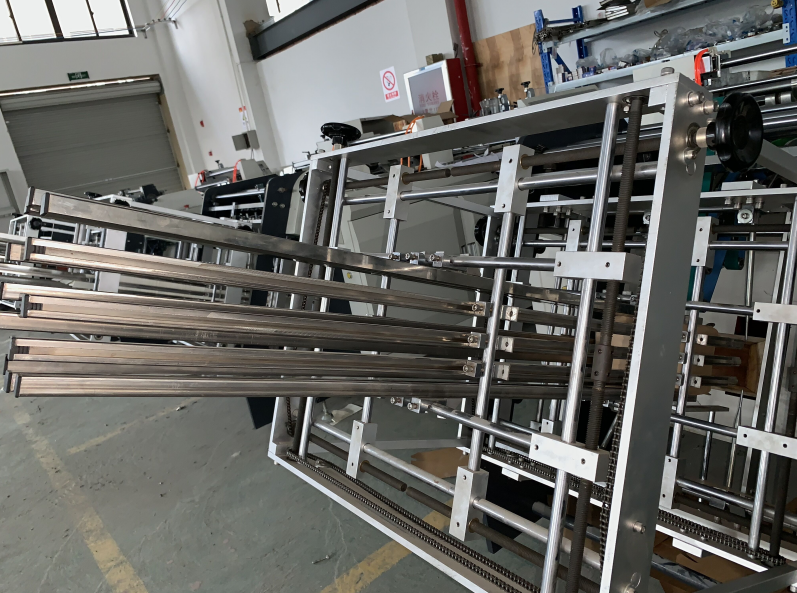

Universal cage, adjustable according to mold size, with slot counting function.

High speed automatic paper carton box making machine price

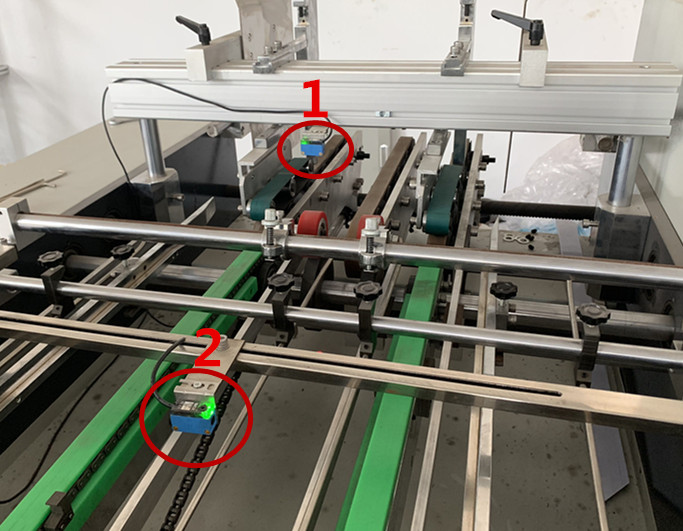

Photoelectric induction paper feed, more accurate, reduce paper waste.

High speed automatic paper carton box making machine price

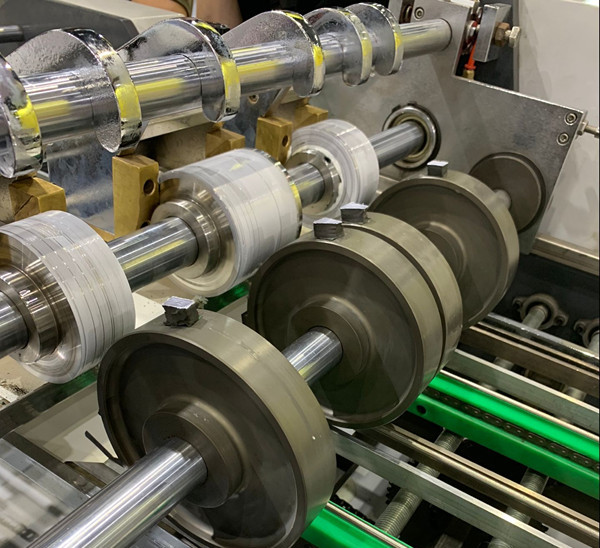

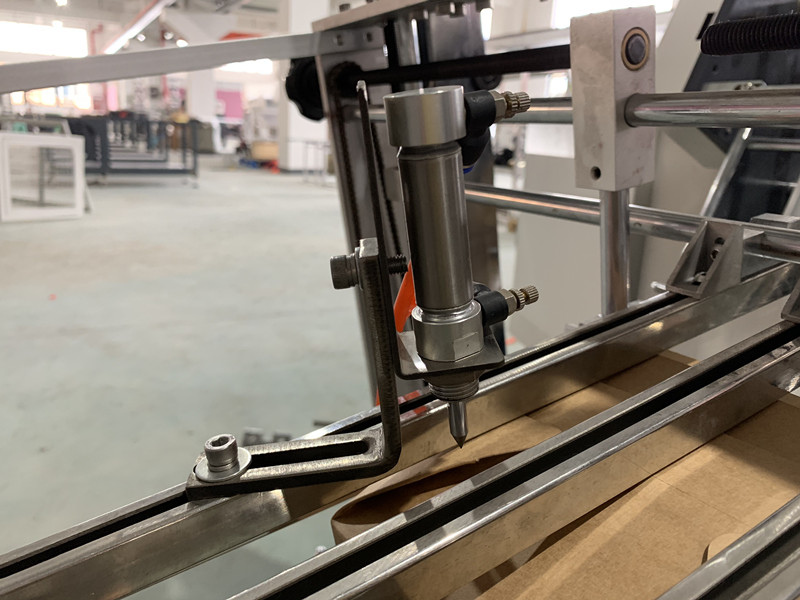

Adjustable glue rolling system, convenient glue point positioning, mold change.

High speed automatic paper carton box making machine price

Automatic calculation:

High speed automatic paper carton box making machine price

Cage can be opened for mold installation.

High speed automatic paper carton box making machine price

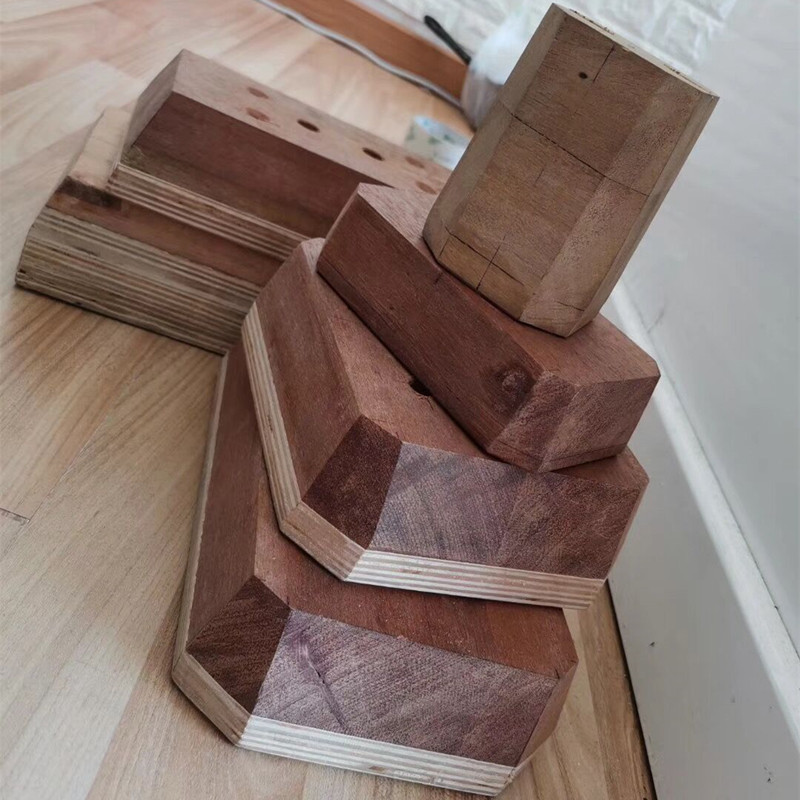

The wooden mold

High speed automatic paper carton box making machine price
