Automatic hamburger box noodle Pizza box take away pack paper cake box making machine

It is an ideal equipment to produce paper box such like hamburger box, chips box. Fried chicken box, kids meal box, etc.

with firm structure, high quality, low noise and high efficiency.

It has paper feeding unit, adjusted unit, glue unit, forming unit, finished products collecting unit and also counting unit.

Share on facebook
Share on twitter
Share on linkedin
Share on whatsapp

Product Information:

Additional information

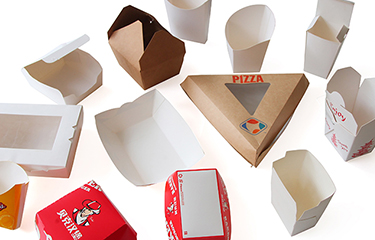

Sample pictureThe machine is gluing one, can make many type of boxes as hamburger box, chips box, lunch box, noodle box, etc.

Technical specifications:

Produce speed

60—160pcs/min (different paper box shapes, the speed is different )

Raw material

200—600gsm card board /ivory paper/ corrugated paper thickness :1.5mm

Carton size

Box length: L 100-450mm and angle: 5° -40°
Box width :B 100-580mm         Edge height H 15-200m

Packing size

 3600x1400x1700 mm

Total power

380v,50hz, 4.5kw

Work principle:

The feeder transmits the pre-printed and cut cardboard from the paper shelf to the convey chain and the sends it to the shaping mold, during the procedure, the cardboard has been glued an you can adjust the position of the gluing, the volume of gluing can be measured while in progress withour stopping word. After being glued, the cardboard will be conveyed to be shaped and collected to be auto calculated as the preconcert quantity and auto mark withouot stopping production, structure: Control unit, paper feeding unit, paper transfer unit, glue spreading unit, forming unit, collecting unit.

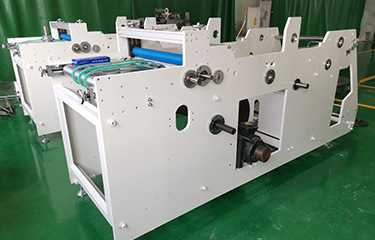

Machine’s body frame
It is constructed by two pieces iron plates, 2cm thickness and by CNC lathing, this is an ideal equipment to produce paper box such like hamburger box, chips box, fried chicken box, kids meal box, fast food box, fast noodles box etc.

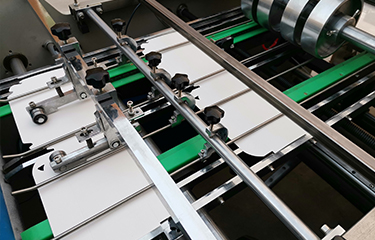

Paper feeding section
We were the first factory in China choosing servo motor for feeding paper system instead of traditional cam system, it have less noise and easier to adjust in order to make different size and shape boxes. Patent no. ZL2014 2065 1723.3

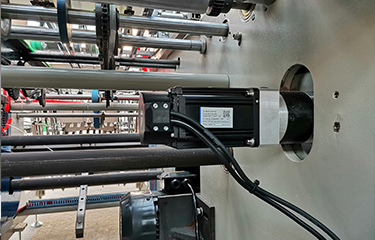

Servo motor for molding

which can control the speed of paper feeding. With very experienced engineers and designer, we never stop, keep improving and perfecting on machines.
Gluing section
Four iron wheels pasted with foams by gluing on papers, normally use the food grade cold glue, 1kg can at least have 8000 boxes.

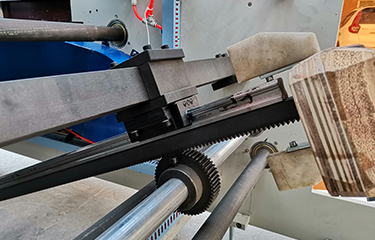

Molding section
Mold is made by oak, after the paper is glued, this mold will going to punch and fit the box into the collection channel.

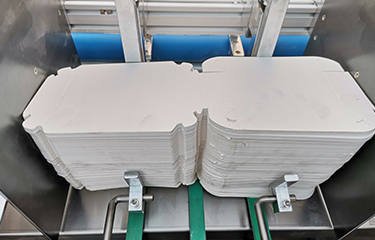

Counting & collecting section
Box going to the channel one by one, with auto
counting. 10 pcs per patch or 20 pcs, the encoder will insert paper to divide with patch.

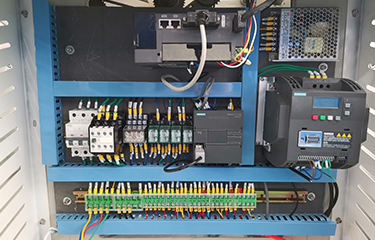

Electrical parts

For main electrical parts, we use famous brand, and gurantee for one year, during this time, any trouble cause if not man made mistakes, we will offer for free.
